এফএইচ -4308 মাইক্রো সার্ভো

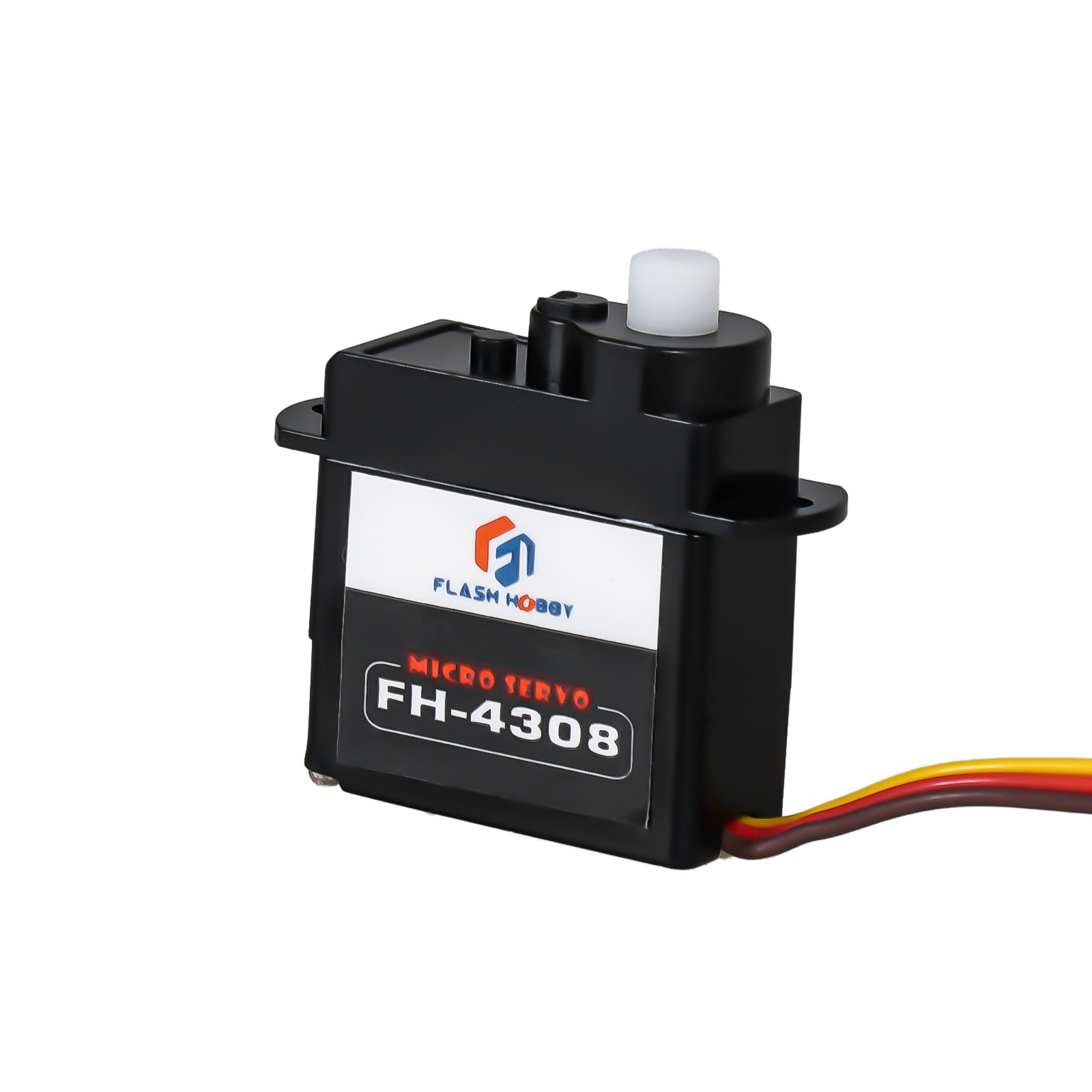

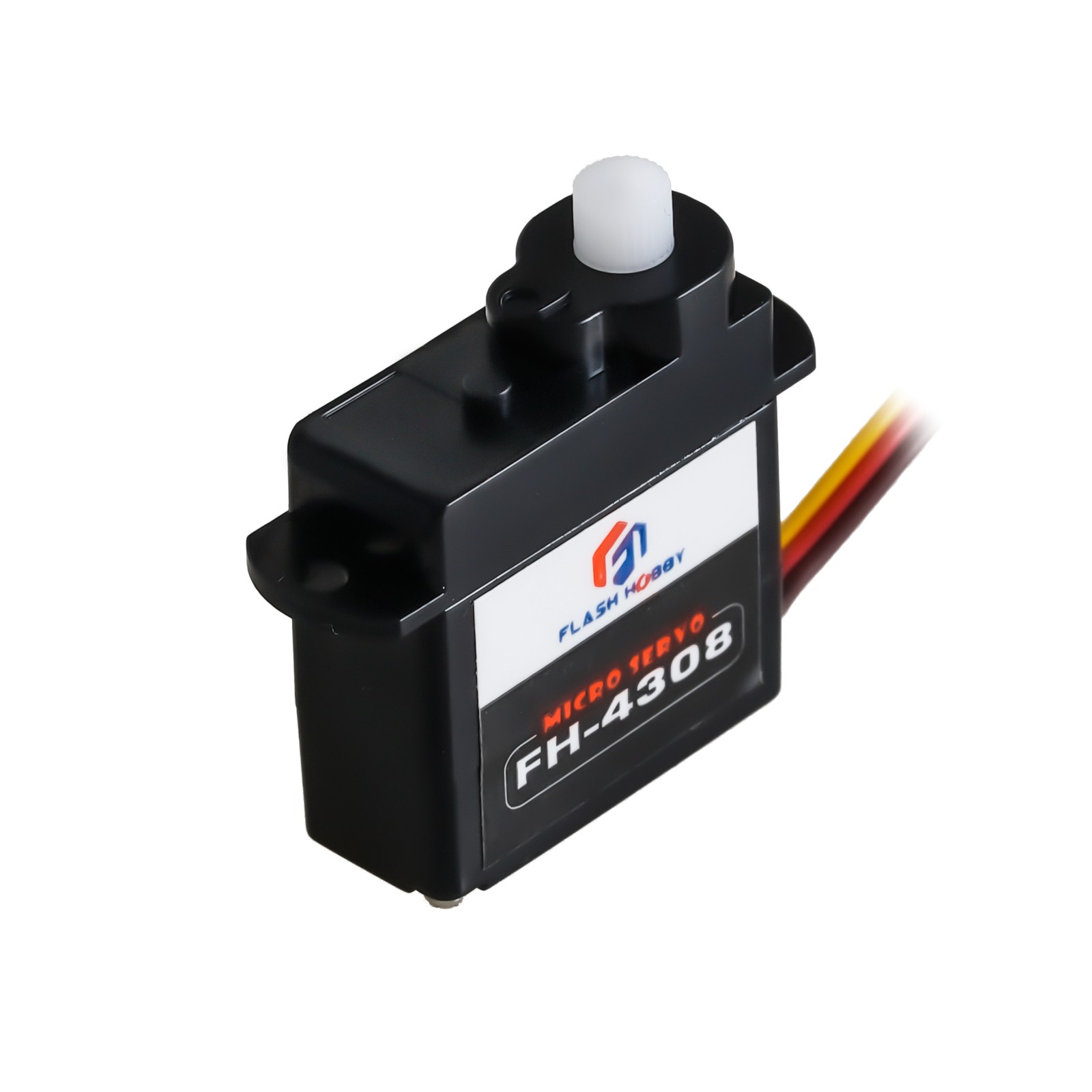

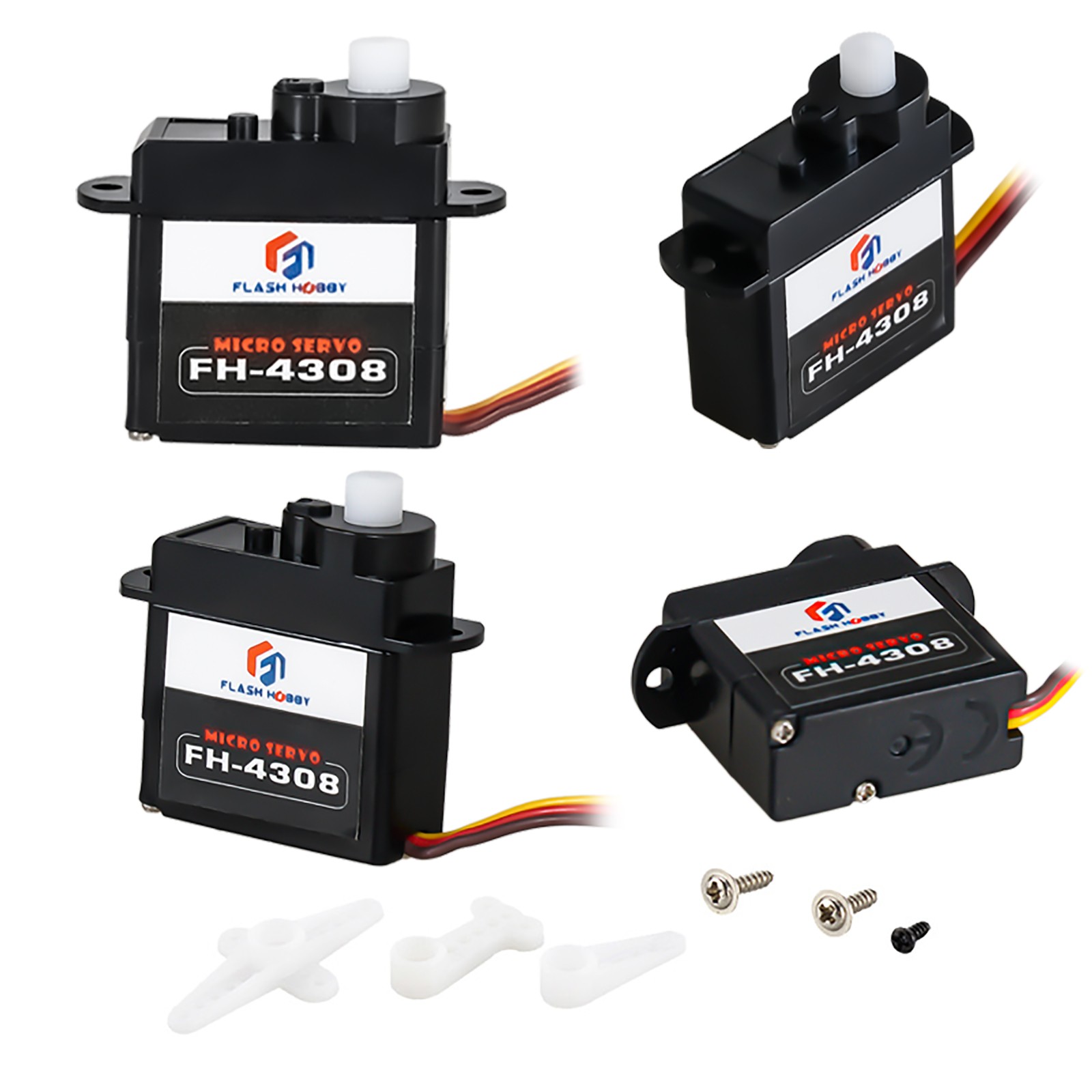

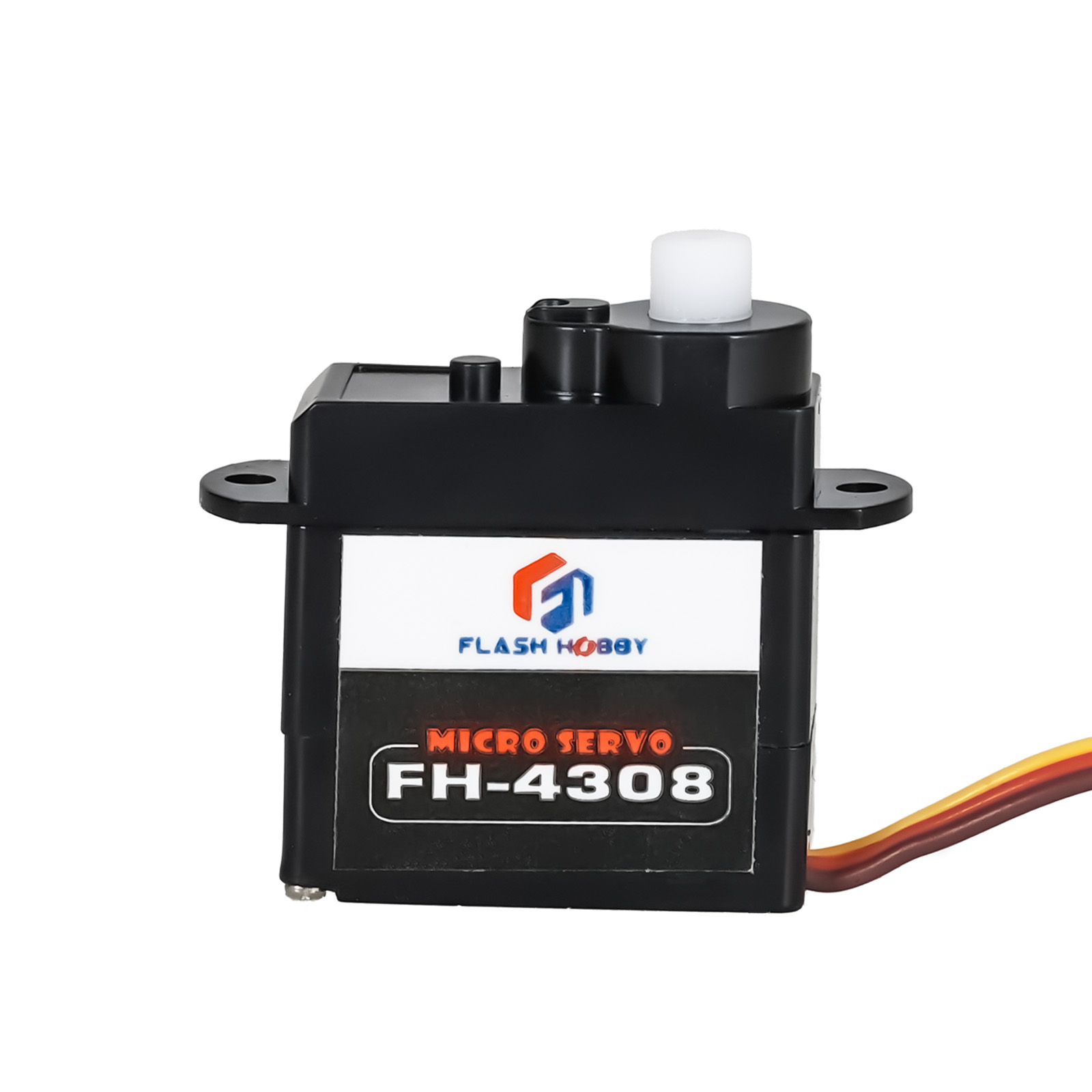

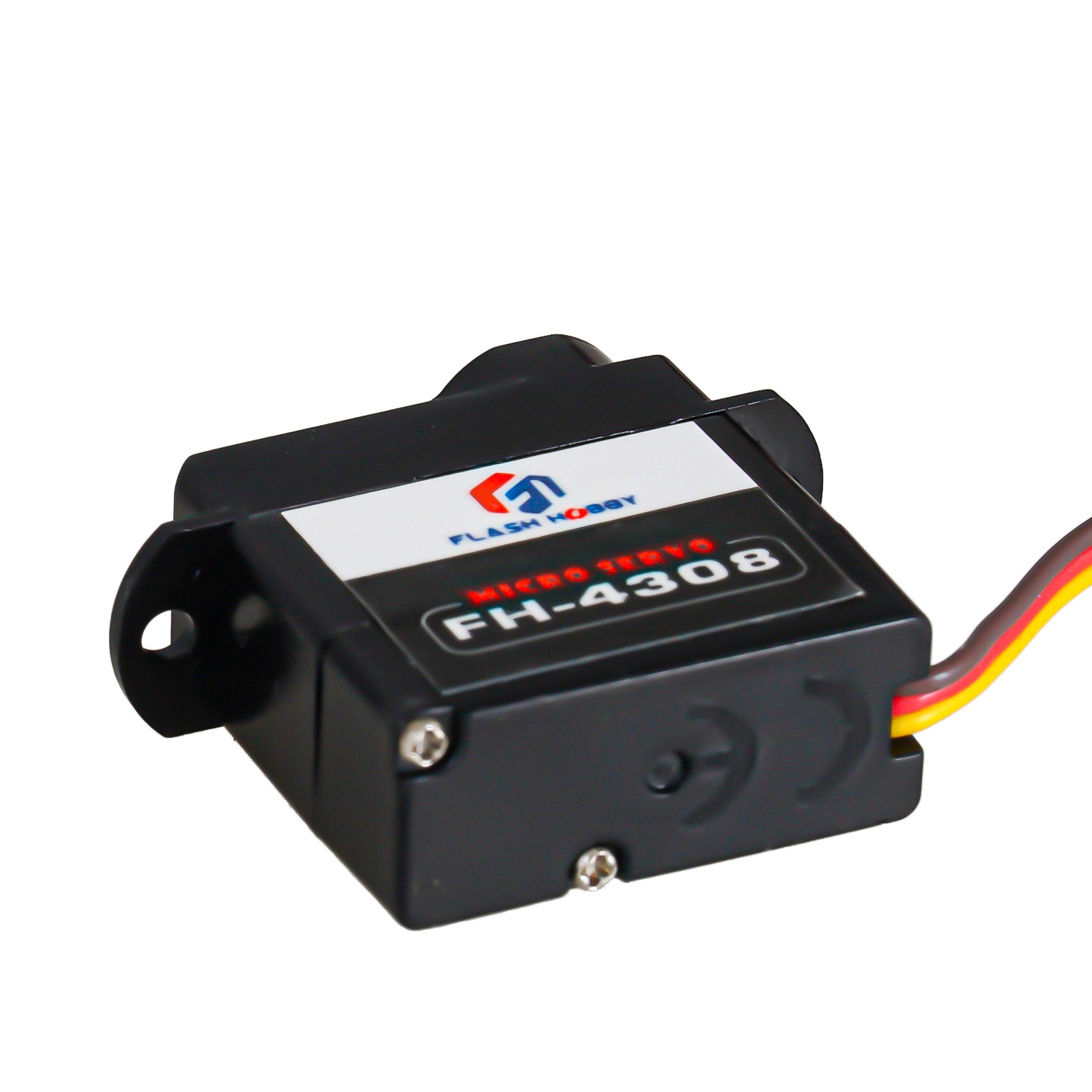

FH-4308 Micro Servo

Control System: Pulse Width Modulation Control

Operation Voltage Range: 3.4V ~6.0V

Operation Temperature Range: -10C°~ +50C°

Circle: ＞100000 times

Operation Travel: 120°±10°

Limit angle: 180°± 10°

Direction: Re-clock wise/ Pulse Travel 1000→2000μsec

Diver type: IC Drive

Motor Type: Coreless

Potentiometer Type: Potentiometer

Amplifier Type: Digital Control

Dimensions: 20.2*8.5*19.3mm

Weight: 4.3±0.2g (without servo horn)

Else

Working Temperature Range：-0℃~+80℃

Apply To：Model Aircraft、FPV Model180、210、250、280、300、320 Etc toothpick drone、Small Toy Drone、Other Speed Regulating Equipment

Control Method：Use ESC And Adjust PWM signal For Control，PWM Adjustment Range 900- 2100US

Bell Material：7075-T6 Aluminum

Motor Type: External Rotor Brushless Motor,Three-phase Motor

MOTOR Drawing:

Product Details:

Application:
